Solenoid Driven Electronic Dosing Pumps
Application
  • Water Treatment: Used for dosing chemicals like chlorine, coagulants, and pH adjusters. The electronic control allows for precise adjustments based on real-time water quality data.
  • Chemical Processing: Involved in the precise dosing of chemicals for reactions and mixing processes. Electronic dosing pumps can be integrated with process control systems for enhanced accuracy.
  • Pharmaceuticals: Employed for the accurate dosing of active ingredients and excipients in drug manufacturing. The programmability and precision help meet strict pharmaceutical standards.
  • Food and Beverage: Used for adding flavors, colors, and preservatives. Electronic dosing pumps help maintain consistent quality and ensure compliance with food safety regulations.
  • Agriculture: Applied in the dosing of fertilizers, pesticides, and herbicides. Electronic control allows for precise application rates and integration with automated irrigation systems.
  • Oil and Gas: Used in various applications including chemical dosing in drilling and production processes. Electronic pumps ensure accurate delivery of additives and chemicals.
  • Textile Industry: For precise dosing of dyes and chemicals used in textile processing. Electronic pumps provide control over dosing volumes and schedules.
  • Pulp and Paper: Employed in the dosing of chemicals used in paper production, such as bleaching agents and sizing chemicals. The electronic control ensures consistent results and efficient operation.
Solenoid Driven Electronic Dosing Pumps
Solenoid Driven Electronic Dosing Pumps
Solenoid Driven Electronic Dosing Pumps
Solenoid Driven Electronic Dosing Pumps

Solenoid Driven Electronic Dosing Pumps

Electronic Dosing Pumps are advanced chemical dosing pumps designed for precise and automated chemical injection. These pumps utilize electromagnetic technology to deliver accurate dosing, making them ideal for applications such as chlorine dosing in water treatment plants. As a type of digital metering pump, they offer high precision and control over dosing rates. Electronic dosing pumps are commonly manufactured for industries requiring exact chemical measurements. They are also known for their efficiency and reliability.

Features:

  • Electronically driven and mechanically actuated diaphragm
  • Adjustable injection frequency (0 to 100 SPM)
  • Compact, lightweight, and robust design
  • Unique double ball check NRVs for enhanced dosing accuracy
  • Solenoid drive with minimal moving parts
  • Digital SPM display (AM Series)
  • Adaptable to specific electrical supply conditions of different countries

Series Comparison Table

ED Series
Flow control by manual frequency variation
EI Series
Flow control by manual frequency variation

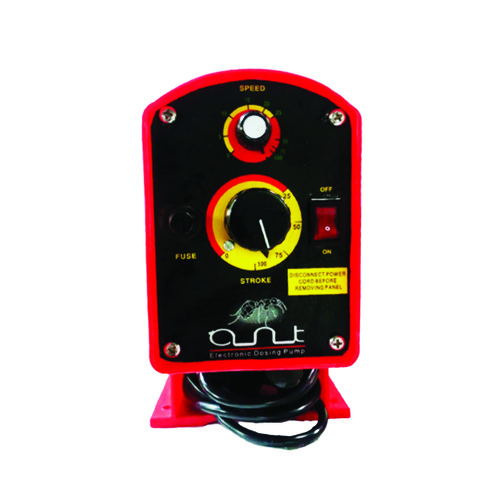

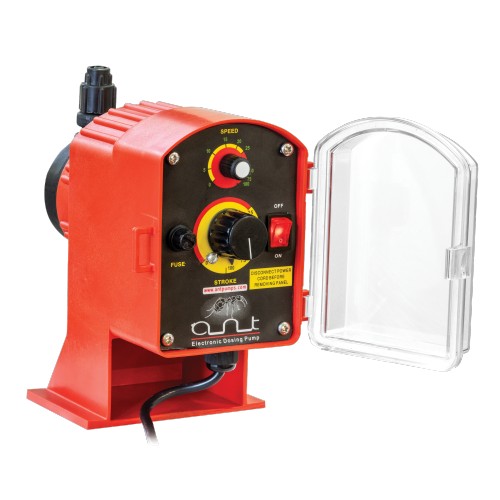

DD Series
Flow control by manual frequency and/or stroke length variation

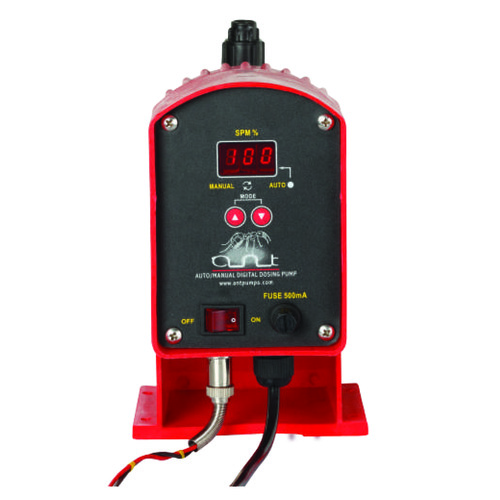

AM Series
Flow control by automatic flow variation, on receiving 4–20mA signal
Features:
  • Adjustable injection frequency (0 to 100 spm)
Features:
  • Adjustable injection frequency (0 to 100 spm)
  • IP55 Enclosure
Features:
  • Adjustable injection frequency (0 to 100 spm) & stroke length
Features:
  • Digital display of spm
  • Manually & automatic flow variation
  • Enable to receive 4–20mA signal

Dosing Pump Series

Dosing Pump Series Overview

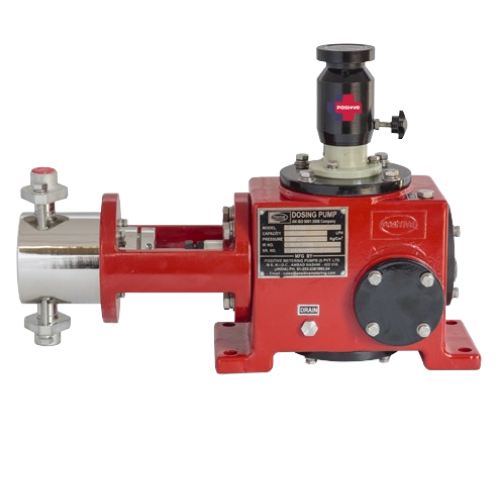

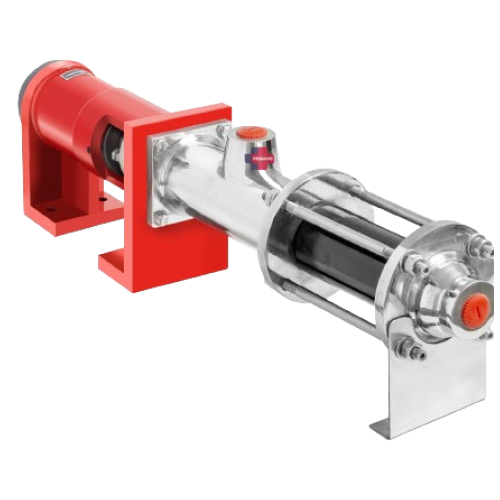

Plunger Dosing Pumps
Plunger Dosing Pumps
Diaphragm Dosing Pump Hydraulically Actuated (SD Pump)
Diaphragm Dosing Pump Hydraulically Actuated (SD Pump)

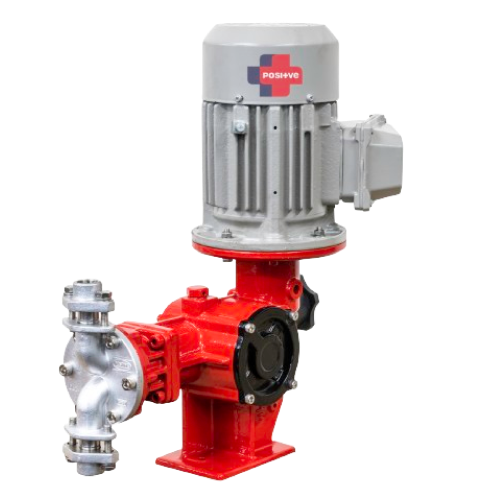

Diaphragm Dosing Pumps Mechanically Actuated
Diaphragm Dosing Pumps Mechanically Actuated
Models
Accessories & Optional
Gallery
Flow Rate
(Ltr/Hr)		 Pressure Bar
(g) Max.		 Pump Model Installation Dimensions
L (mm) W (mm) F (mm)
0-64EI 01200100200
0-64ED 01200100200
0-102ED 02210100200
0-201ED 02210100200
0-310ED 03250100200
0-124ED 03250100200
0-304ED 04280150240
0-402ED 04280150240
0-501ED 04280150240
0-28DD 01200100200
0-64DD 01200100200
0-102DD 02210100200
0-304DD 04280150240
0-64AM 01200100200
0-102AM 02210100200
0-204AM 03250100200
0-304AM 04280150240
0-402AM 04280150240
0-501AM 04280150240


Material Of Construction:

  • SS304, SS304L, SS316, SS316L
  • Monel
  • Hastalloy B,C
  • Alloy 20
  • PP/PVDF,PTFE, GFT
  • Diaphragm - Specially Designed PTFE,GFT


  • Suction & Discharge Tubing of LDPE Material
  • Strainer Cum Foot Valve

  • Anti Syphon Valve in PP

  • Built in electrical cable moulded with plug

  • Pressure Relief Valve

  • Calibration Pot

  • Pulsation Dampener

  • Local Control Panel

  • Level Gauge
